Product Description

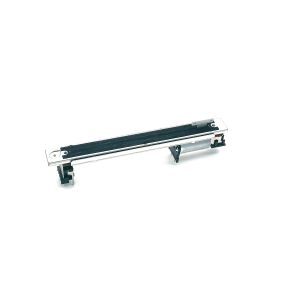

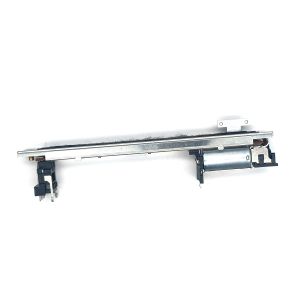

100mm treavel electric pusher single B10K T handle with motor motor
potentiometer used for mixer pusher
Potentiometer is often used for audio control, tuning, dimming,
speed regulation, temperature regulation, fog regulation. For
example: mixing desk, guitar effects, stereo, headphones,
walkie-talkie, radio, amplifier, audio amplifier, mechanical
equipment, punch, recorder, sewing machine, medical equipment,
microphone and so on.
Specification
item | value | Model Number | SM100N | Type | Slide Potentiometer | Place of Origin | China | | Guangdong | Brand Name | TQ | Technology | Carbon Film | Resistance | 1K, 2 K, 5K, 10K , 20K ohm | Resistance Tolerance | ±20% | Rated Power | B:0.5W other than B:0.25W | Max. Operating Voltage | DC10V,AC200V | Operating Temperature | -10~+70 | Brand | SM100N | Power (Watts) | B:0.5W other than B:0.25W | Tolerance | ±20% | Adjustment Type | Slide | Diameter | 17.2mm | Length | 100mm | Mounting Type | PC pin | Termination | PCB | Package / Case | Plastic, | Built in Switch | None | Temperature Coefficient | ±400ppm/°C | Rotation | Not Applicable | Resistive Material | Carbon | Termination Style | PC Pin | Actuator Type | Not Applicable | Actuator Length | 8.2mm | Actuator Diameter | 18.5mm | Bushing Thread | Not Applicable | Shaft Size | Not Applicable | Resistance | 10K | Taper | B | Power rating | B:0.5W other than B:0.25W | Rated voltage | DC10V AC200V | Residual resistance | 500ohm MAX. | slide noise | 68m VP-P | Insulation resistance | 100Mohm or more | Conductive resistance | 1K ohm | Total travel slide | 100±0.5mm/60mm±0.5mm | Sliding Force | 50gf±30gf |
|
Packing & Delivery
1. Bags, blister boxes, bubble wrap, boxes, cartons
2. Each carton shall be labeled with the original label to register
the items in the carton
3. Original packaging, reasonable cutting boxes to save freight
4. Invoices are available
5. Fedex, UPS, DHL online shipping
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European or
By Ocean & By Air
Service:WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied
in 12 hours.
TQ Electronic factory provides it to you
1.Power plant. Professional products and services:We are based in
Guangdong, China, start from 2013,sell to North
America(15.00%),Western Europe(10.00%),Central
America(10.00%),Eastern Europe(10.00%),South
America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Northern
Europe(5.00%),Southern Europe(5.00%),Africa(5.00%),Southeast
Asia(5.00%). There are total about 301-500 people in our office.
Seven professional product managers online to provide you with
exclusive product customization services. A team of five
professional engineers provide technical support for us.
2.High quality. Always provide you with detailed product drawings
and specifications confirmation (including samples) and manufacture
according to your approved specifications.
Always each batch of goods must pass all tests before leaving the
factory, and only after passing the tests one by one can they be
delivered (including samples).
3.Reasonable price. Alway Factory direct prices.
4.Exclusive service. Always customer service one-on-one exclusive
service.Support all-weather after-sales service
5.Accept custom. OEM,Seven professional product managers online to
provide you with exclusive product customization services. A team
of ten professional engineers provide technical support for us.
We have three factories producing potentiometers, encoders and
switches respectively. We believe that quality and service are
everything. We are semi-finished products supplier, the quality of
our products directly determines the quality of customers' finished
products, so we dare not neglect! Come and let us serve you!!!
Product Drawing
