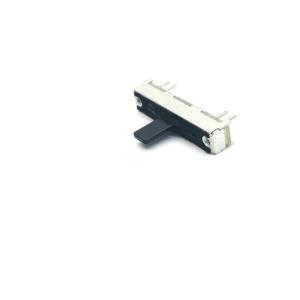

C1540N Metal Handle 15mm Travel 6.5mm Wide Used For Sound Console
Earphone And Microphone
Contact type
1. The rated load:DC 4V 300mA
2. Contact impedance: <50mΩ
3. Insulation impedance: > 1 00mΩ DC500V
4. Resistance welding temperature: 250±15° 5s
5. The service life of the: 10,000 cycles
6. The use of temperature: -25 C to 80 'C
7. Use the humidity: 85% RH
8. Operating force : 200gf
item | value |
Model Number | C1540N-9.5A1-B20K-9N |
Type | Slide Potentiometer |
Place of Origin | China |
| Guangdong |
Brand Name | TQ |
D/C | C1540N-9.5A1-B20K-9N |
Technology | Carbon Film |
Resistance | 5KΩ~2MΩ |
Resistance Tolerance | ±20% |
Rated Power | 0.05W |
Max. Operating Voltage | 200V |
Operating Temperature | -20~+70 |
Brand | mixing console Slide potentiometer |
Packaging | none |
Power (Watts) | 200V |
Tolerance | ±20% |
Adjustment Type | Slide |
Diameter | none |
Length | none |
Mounting Type | plug in |
Termination | none |
Package / Case | mental |
Built in Switch | None |
Temperature Coefficient | 0.05 |
Rotation | Not Applicable |
Resistive Material | Carbon |
Termination Style | PC Pin |
Actuator Type | Flatted |
Actuator Length | 9.5mm |
Actuator Diameter | Not Applicable |
Bushing Thread | Not Applicable |
Shaft Size | Not Applicable |
Number of Turns | Not Applicable |
Cross Reference | C1540N-9.5A1-B20K-9N |
Product name | mixing console Slide potentiometer |
Certification | CE ROHS |
Service | OEM Customization |
Delivery Time | 7~10 Days |
PAYMENT | PaypalTTWestern Union Trade Assurance |
Package | Carton |
Resistance Taper | A.B .C |
Main travel | 15mm |
Shipping By | DHLUPSFedexEMSHK Post |
ODM service | offered |
Packing &Delivery
Company Profile
About slide potentiometer
1) lever type:: C lever, CA-lever, B-lever
2) Taper: A,B,C.W
3) Resistance value: 5-500K
4)lever length:10mm,15mm,20mm,25mm
5)Pin number:3
Application
a) Audio mixer
b) Speaker
c) Microphone
d) Walkie-talkie
e) musical instrument
f) drones
g) earphones
h) amplifier
i) Dimmer adjustment
j) medical instrument
k) recorder
l) hair straigtener and curler and drier
m) sewing machines
n) juicer
o) electric fan
Packing
1.polybag
2 inner box
3 carton
